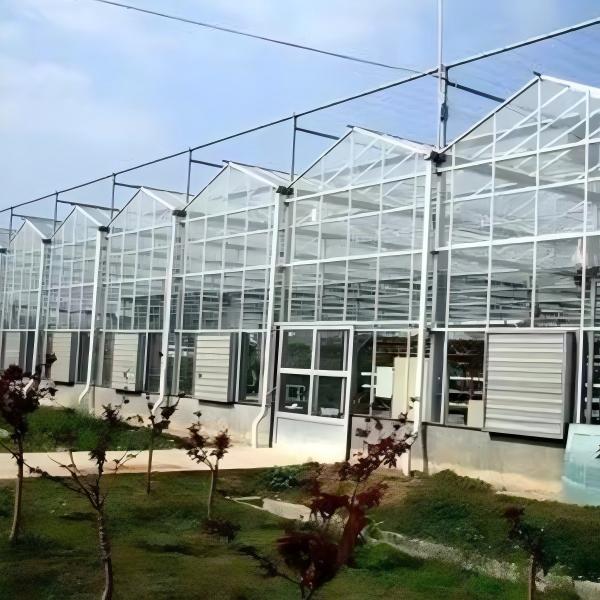

Professional Hybrid Greenhouse Tempered Glass and Polycarbonate Panel Greenhouse
The greenhouse can be equipped with internal and external shading systems, roof and side window ventilation, and water curtain and fan cooling. Additional configurations can be selected by users based on their specific planting requirements.
Key Features:
Quantity
Minimum order quantity : 0
My Inquiry
add to the cart
Share
Innovative Hybrid Greenhouse Combining Glass and Polycarbonate
Premium Tempered Glass Greenhouse Performance
Our hybrid greenhouse represents the next generation of commercial growing technology, combining the superior light transmission of glass with the exceptional insulation and impact resistance of polycarbonate. This innovative tempered glass greenhouse design delivers premium performance while providing the practical benefits of polycarbonate materials where they matter most.
Durable Polycarbonate Glass Panels Technology
We integrate high-quality polycarbonate glass panels in strategic locations throughout the structure: sidewalls, end walls, and lower roof sections. This hybrid approach delivers the clarity and prestige of glass where visibility matters most, while leveraging polycarbonate's superior insulation and hail resistance in high-impact areas.
Professional Tempered Glass Greenhouse Construction
High-Transparency Safety Glass Systems
The tempered glass greenhouse sections feature:
- 4mm/5mm fully tempered safety glass
- 90-92% photosynthetic light transmission
- 5x stronger than standard annealed glass
- UV-stabilized for long-term clarity
- Used in roof peaks and main viewing areas
Heavy-Duty Structural Framework
Built to commercial-grade standards:
- Hot-dip galvanized steel columns and trusses
- 25+ year corrosion resistance warranty
- 6000-series aluminum glazing bars
- Wind load rated: 130-150km/h
- Snow load capacity: 40-60kg/m²
Advanced Polycarbonate Glass Panels Integration
Hybrid Material Optimization
Strategic polycarbonate glass panels placement:
- Roof lower sections: Polycarbonate for hail resistance
- Sidewalls: Polycarbonate for insulation and impact
- End walls: Polycarbonate for pedestrian safety
- Roof peaks: Tempered glass for maximum light
- Gutter level: Polycarbonate for snow load
Thermal Insulation and Impact Resistance
Superior hybrid performance characteristics:
- 8mm triple-wall polycarbonate: R-value 2.5
- Tempered glass: R-value 0.95
- Combined system: 30-40% energy savings
- Polycarbonate: 250x stronger than glass
- Hail resistant up to 50mm diameter
Light Transmission and Diffusion Properties
Optimized light management:
- Tempered glass: 90-92% clear transmission
- Polycarbonate: 83-89% diffused transmission
- Combined: Uniform light distribution
- Eliminates hotspots and shadowing
- 99.9% UV protection throughout
Key Benefits of Our Hybrid Greenhouse Design
Optimal Balance of Performance and Cost
The hybrid greenhouse delivers the best of both worlds:
- Glass aesthetics and prestige for public areas
- Polycarbonate durability in high-risk zones
- 20-30% lower cost than all-glass structures
- Better insulation than all-glass designs
- Higher light transmission than all-polycarbonate
Enhanced Energy Efficiency
Significant operational savings:
- Polycarbonate insulation reduces heating costs
- Glass provides maximum free solar gain
- Combined: 30-40% better than all-glass
- Reduced cooling requirements in summer
- Excellent year-round thermal performance
Maximum Durability and Safety
Unmatched protection for your investment:
- Tempered glass safety in public areas
- Polycarbonate hail and impact resistance
- No dangerous shattering from polycarbonate
- Reduced storm damage repair costs
- 10-15 year polycarbonate warranty
Specifications and Customization Options
Material Configuration Options
Customize your hybrid design:
- Roof: 50% glass / 50% polycarbonate standard
- Sidewalls: 100% polycarbonate standard
- End walls: Glass entrance + polycarbonate
- Custom ratios: Any glass/polycarbonate mix
- Polycarbonate options: 6mm/8mm/10mm clear/diffused
Standard Sizes and Custom Design
- Bay widths: 4m, 6.4m, 8m, 12m standard
- Gutter heights: 4m to 8m+ customizable
- Roof styles: Venlo, gable, Gothic arch
- Configurations: Single-span or multi-span
- Custom engineering for specific requirements
Climate Control and System Packages
Complete integrated systems:
- Automated ventilation and shading
- Heating and cooling systems
- CO₂ enrichment and humidity control
- Computerized climate management
- Irrigation and fertigation systems
