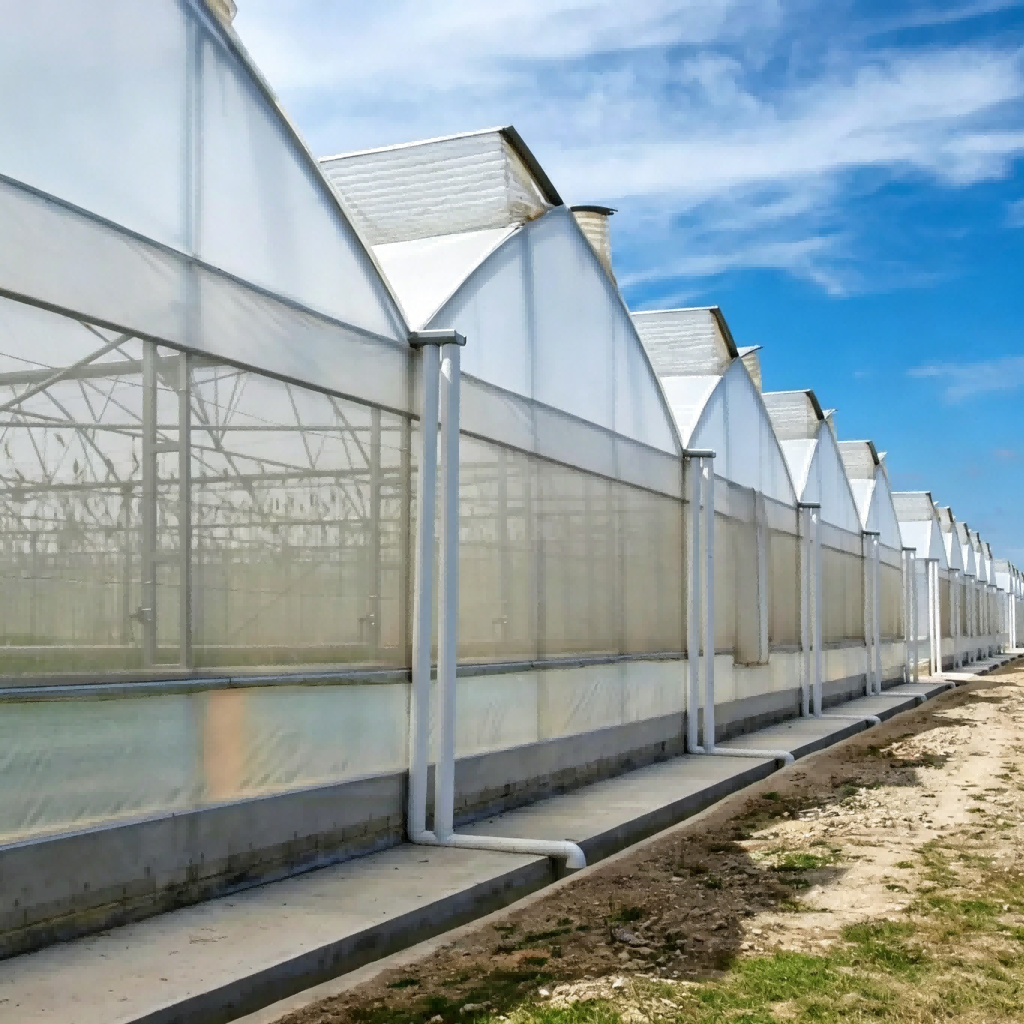

Gothic Greenhouse 01
Gothic Style Greenhouse High Tunnel GrowSpan Gothic Premium Greenhouse
This gothic greenhouse features elegant arched roof design, stable structure and large internal space. It has good wind resistance and rainproof performance, suitable for all kinds of vegetable, fruit and flower planting. Equipped with complete ventilation, cooling and irrigation systems, it creates a suitable growing environment all year round.
Key Features:
Quantity
Minimum order quantity : 0
My Inquiry
add to the cart
Share
Premium Gothic Style Greenhouse for Heavy Snow and Cold Climates
Superior Gothic Arch Design Advantages
Our Gothic Style Greenhouse features the distinctive pointed-arch roof design inspired by cathedral architecture, engineered specifically for challenging weather conditions. Unlike conventional round tunnels that collapse under heavy snow, the steep gothic arch automatically sheds snow and ice, maintaining structural integrity even in extreme winter climates. This proven design has become the industry standard for cold-region agriculture.
Rowspan Gothic Premium Greenhouse Engineering
The Rowspan Gothic Premium Greenhouse represents the pinnacle of gothic greenhouse technology. Our advanced engineering creates wider spans without internal support columns, maximizing usable growing area. The unique gothic profile creates greater internal air volume, resulting in more stable temperatures, reduced thermal fluctuations, and improved natural ventilation compared to traditional tunnel designs.
Professional Gothic Style High Tunnel for Commercial Agriculture
Enhanced Snow and Wind Load Capacity
Our Gothic Style High Tunnel is engineered to withstand 60+ lbs per square foot of snow load – more than double the capacity of standard round tunnels (typically 25 lbs/sq ft). The pointed arch geometry effectively distributes structural stress, while hot-dip galvanized steel frames provide wind resistance up to 130km/h (80mph). Meets and exceeds all NRCS standards for grant-funded agricultural projects.
Column-Free Wide Span Growing Space
The gothic arch design enables exceptionally wide, column-free interior spaces. Standard widths range from 12ft to 30ft+, with customizable lengths in 4ft increments. This unobstructed space accommodates tall trellised crops, farm equipment, and efficient mechanized operations. The increased sidewall height provides superior vertical growing room for tomatoes, cucumbers, and other vining crops.
Key Features of Our Gothic Style Greenhouse Systems
Heavy-Duty Galvanized Steel Frame Construction
Constructed from 1.66"OD 14-gauge structural steel tubing with hot-dip galvanized coating for 20+ years of rust-free performance. Three heavy-duty purlins per bay ensure exceptional structural rigidity. All connections use precision-engineered steel brackets for maximum strength, with no plastic components in critical load-bearing areas.
Steep Peak Roof for Natural Snow Shedding
The signature steep gothic peak creates a natural slope that causes snow and ice to slide off automatically, eliminating dangerous weight accumulation. The same steep angle also channels rainwater efficiently, preventing pooling and leakage. Condensation runs down the arch profile rather than dripping directly onto crops, reducing fungal disease pressure.
Advanced Climate Control and Ventilation
Every gothic style high tunnel includes manual or motorized roll-up sidewalls with insect netting for full cross-ventilation. Optional end-wall doors, ridge vents, and shade cloth systems provide complete climate management. The increased internal air volume creates a natural buffer against temperature extremes, reducing heating and cooling requirements.
Benefits of Choosing Rowspan Gothic Premium Greenhouse
Superior Light Penetration and Uniform Distribution
The gothic arch shape optimizes solar capture throughout the day, delivering more uniform vertical light penetration than semicircular designs. This means plants at all heights receive consistent light exposure, promoting even growth and maximizing photosynthesis efficiency. Especially beneficial during low-light winter months in northern latitudes.
Extended Growing Seasons in Harsh Environments
Our Gothic Style Greenhouse enables 3-5 months of season extension – significantly longer than conventional tunnels. The superior heat retention, snow-shedding capability, and structural strength allow successful winter growing in zones where other greenhouse types fail. Operate year-round in moderate climates, or extend production deep into fall and early spring in cold regions.
Higher Crop Yields and Quality Improvement
Protected gothic tunnel environments typically produce 30-60% higher yields than field cultivation. The stable microclimate reduces plant stress, while improved air circulation minimizes disease. The condensation management system prevents water damage to delicate flowers and fruits, resulting in cleaner, higher-quality produce with fewer blemishes.
